SK Series
Position:Home > Product > Collet Chuck > SK Series >

ER Collet Chuck

GerZhuo Mechatronics Date:2017-12-02
Material: Allyed case hardened steel
Hardness: HRC 56-58
Cooling AD+B type can be made by request


Features:
1, Material: Allyed case hardened steel, black-finished and precisely grinded
2, Max run out: <0.005mm
3, Surface roughness: Ra<0.005mm

mm

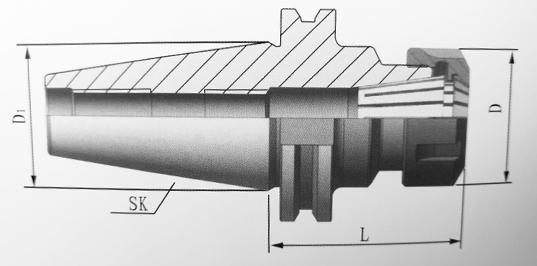

Model D d1 d2 d3 d4 d5 l1 l2 l3 l4 e1 e2
SK30 50 31.75 59.3 44.3 45 13 47.8 24 19 16.4 21 5
SK40 63.55 44.45 72.3 56.25 50 17 68.4 32 25 22.8 27 5
SK50 97.5 69.85 107.25 91.25 80 25 101.75 47 37.7 35.5 42 7
