SC Precision Milling Chuck

GerZhuo Mechatronics Date:2017-11-14
Material: Alloyed steel
Hardness: HRC56-58
Application: for mounting straight shank tools in Straight


Features:
1, Taper shank is case hardened to 58-62 HRC
2, Taper ground to AT3 or better accuracy standard for maximum contact with spindle
3, All critical surface are precision ground
4, Dynamically balanced to 15,000RPM at G6.3 by Haimer balancing machine at all location for consistent balance

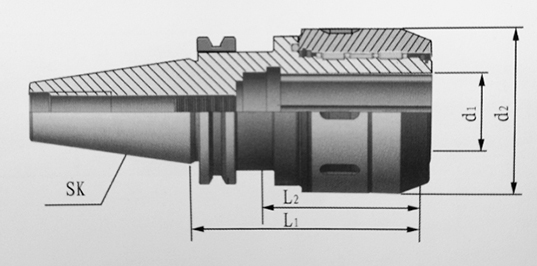

mm

Model d d2 L1 L2 Weight(kg)
SK30-SC20-85 20 55 85 70 1.9
SK30-SC20-100 20 55 100 70 2.1
SK40-SC20-85 20 55 85 70 2.4
SK40-SC20-100 20 55 100 70 2.5
SK40-SC20-135 20 55 135 70 2.8
SK40-SC32-105 32 73 105 75 2.7
SK40-SC32-135 32 73 135 75 3.0
SK50-SC20-105 20 55 105 70 4.5
SK50-SC20-150 20 55 150 70 4.9
SK50-SC32-110 32 73 110 75 5.2
SK50-SC32-135 32 73 135 75 5.9
SK50-SC42-110 42 95 110 90 6.0
